Overview of the Software

ETAP is a premier energy management platform developed to design, operate, and automate power systems. Its core strength lies in creating a “digital twin”—an intelligent, always-up-to-date electrical network model that mirrors physical assets. This model-driven solution bridges the gap between engineering design and operational reality, allowing organizations to validate decisions through predictive simulation before implementing them in the field.

As a leading software platform developer for electrical power systems, ETAP provides a single, unified tool that caters to engineers, managers, and operators. It integrates proven analysis engines and algorithms to ensure safety, efficiency, and sustainability across industries like utilities, data centers, and manufacturing.

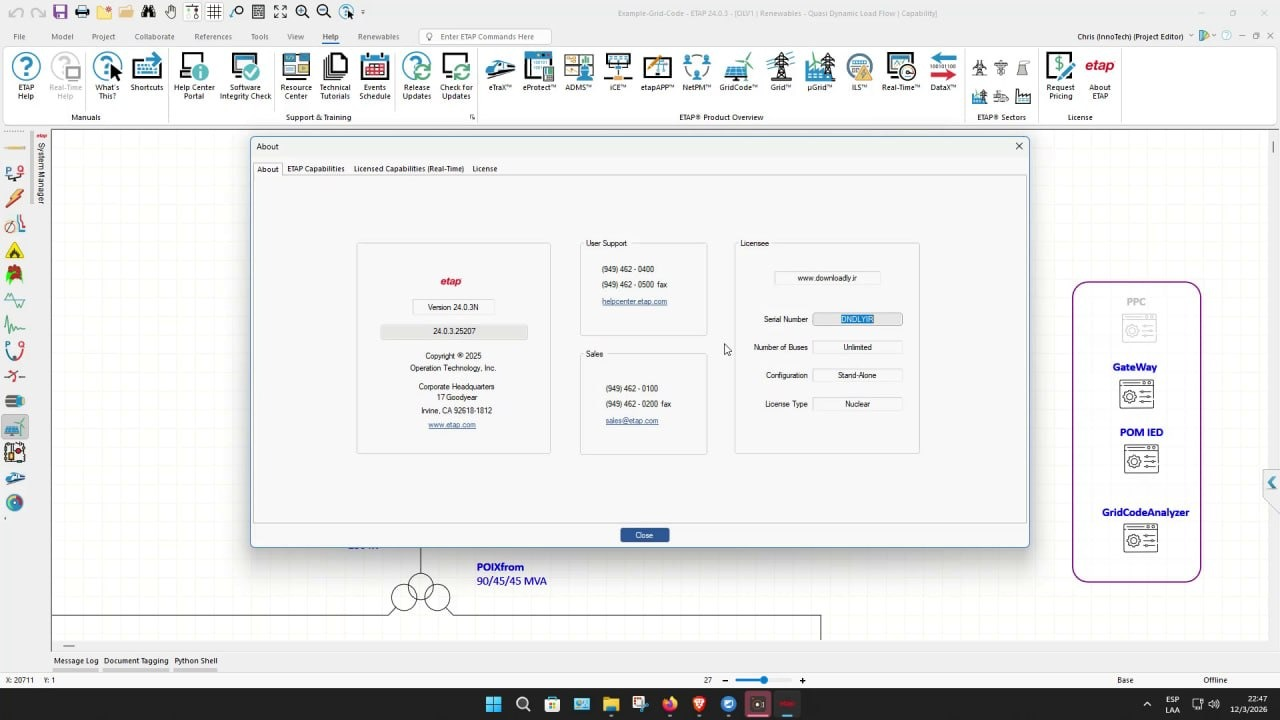

Screenshot

Key Features

ETAP distinguishes itself through a suite of advanced features designed for the entire lifecycle of a power system. These features are organized around three core “twins”: Design, Operation, and Automation.

The Design Twin

For engineers focused on planning and construction, the Design Twin offers tools to build accurate models from the ground up.

• Automated Modeling: Accelerate project timelines with intelligent data import and model generation.

• Smart Visualization: Utilize advanced multiple views to interpret complex network data intuitively.

• Rule-Based Design: Implement best practices and compliance standards automatically during the design phase.

• Integrated Network Analysis: Perform load flow, short-circuit, and protection coordination studies within the same environment.

• Collaborative Engineering & Project Management: Enable teams to work simultaneously on large-scale projects with version control and data integrity.

The Operation Twin

For facility and grid operators, the Operation Twin focuses on real-time awareness and predictive analytics.

• Model-Driven Monitoring: Move beyond raw data to visualize system status based on an accurate digital twin.

• Operational Awareness: Gain a holistic view of system health, from low-voltage systems to high-voltage transmission.

• Real-Time Analytics & Predictive Simulation: Forecast potential failures or bottlenecks before they cause outages.

• Optimization Solutions: Automatically identify optimal settings for cost reduction and energy efficiency.

• Operator Training System (OTS): Provide a safe, virtual environment to train staff on emergency response and normal operations without risking the live grid.

The Automation Twin

For advanced facilities seeking autonomous control, the Automation Twin enables proactive system management.

• Proactive & Rule-Based Control: Automate responses to predefined events to maintain stability.

• Model-Based Control: Utilize the digital twin to compute optimal control actions in real-time.

• Situational Awareness & Intelligent Optimization: Ensure operators have the context needed to make informed decisions, supported by AI-driven optimization algorithms.

What’s New in the Latest Version

While the core functionality remains robust, the evolution of ETAP focuses on deeper integration with digital ecosystems and expanding capabilities for smart grids. Recent iterations emphasize the following advancements:

• Enhanced Digital Power Model Solution: The intelligent network model is now more exhaustive, ensuring that data consistency between the design and operation phases is seamless.

• Geospatial Platform Integration: ETAP Grid™ now offers a more progressive geospatial platform, allowing utility companies to simulate and analyze smart grid performance with location-aware accuracy.

• Complementary Integration: ETAP now complements Schneider Electric Advisors and other IoT platforms more effectively, allowing for holistic energy management that bridges traditional software with connected products.

System Requirements

To run ETAP effectively, your system should meet the following recommended requirements to handle complex simulations and large-scale digital twins:

• Operating System: Windows 10, Windows 11, or Windows Server (64-bit editions).

• Processor: Intel Core i7 or Xeon equivalent; multi-core processor highly recommended for simulation speed.

• RAM: 16 GB minimum; 32 GB or more recommended for large-scale industrial or utility models.

• Storage: SSD with at least 50 GB of free space for installation and project data.

• Graphics: Dedicated GPU with OpenGL support for advanced visualization and smart visualization features.

Installation Guide

Installing ETAP requires a structured approach to ensure all modules function correctly.

1. Acquisition: Obtain the software license and installer from a certified ETAP distributor or the official website. Ensure you have a valid license key.

2. System Prep: Close all background applications. Ensure your operating system is updated.

3. Run Installer: Launch the setup executable with administrator privileges.

4. License Configuration: During installation, you will be prompted to configure the license manager. Select the appropriate option (local license, network server, or cloud-based) based on your organization’s setup.

5. Module Selection: Choose the necessary modules (e.g., Design Twin, Operation Twin, Real-Time, etc.) relevant to your workflow to save disk space.

6. Completion: Follow the prompts to complete the installation, then restart your system to finalize driver and service configurations.

How to Use the Software

Maximizing the value of ETAP involves utilizing its lifecycle approach.

1. Create Your Digital Twin: Start by building a model of your electrical network. This can be done manually, through CAD imports, or via automated modeling from existing SCADA data.

2. Run Studies (Design Phase): Use the analysis engines to perform load flow calculations, short-circuit analysis, and arc flash studies to validate the design’s safety and reliability.

3. Deploy to Operation: Connect the validated model to your live system (SCADA, EMS) to transform it into an operation twin.

4. Monitor & Simulate: Use the intelligent monitoring dashboard to view real-time analytics. Run “what-if” scenarios to test future expansions or potential failure modes.

5. Automate: Implement control logic through the Automation Twin to proactively manage low-voltage power systems, generator dispatch, or load shedding without manual intervention.

Best Use Cases

ETAP is versatile enough to handle the complexities of various sectors:

Power Generation

From design to smooth operation, ETAP helps power generation plants provide reliable, clean, and cost-effective power. It models everything from conventional thermal plants to renewable energy sources like solar and wind.

Power Transmission

ETAP integrates transmission network planning with detailed substation models. It supports topology processing, electric SCADA, and real-time energy management systems (EMS) to ensure grid stability.

Power Distribution

ETAP Grid™ offers an integrated solution for distribution network analysis. It allows utilities to simulate and optimize smart grid performance on a progressive geospatial platform.

Industrial Power Systems

ETAP enables intelligent situational awareness throughout the entire lifecycle of an industrial facility—from concept to commissioning and in-service support.

Transportation

For railways, marine, and aerospace industries, ETAP models complex AC and DC power networks, ensuring safety and reliability in critical transportation infrastructure.

Commercial and Low Voltage Systems

For mission-critical facilities like data centers and hospitals, ETAP provides a suite of electrical design and analysis tools to ensure uptime and safety for low-voltage power systems.

Advantages and Limitations

Advantages

• Unified Platform: Eliminates the need for separate tools for design, analysis, and operations.

• Digital Twin Accuracy: Reduces risk by validating operational decisions against a proven digital model.

• Comprehensive Analysis: Offers industry-standard analysis engines and algorithms that are trusted globally by engineers.

• Scalability: Handles everything from single low-voltage systems to complex multi-utility grids.

Limitations

• Cost: As a premium energy management software platform, licensing can be a significant investment for small businesses or independent consultants.

• Learning Curve: The depth of features requires specialized training for users to utilize the advanced multiple views and modeling capabilities fully.

• Resource Intensive: Requires high-end hardware to run large-scale simulations efficiently.

Alternatives to the Software

While ETAP is a market leader, other tools exist depending on your specific focus:

• SKM PowerTools: A strong competitor focused heavily on electrical engineering analysis, protection coordination, and arc flash safety.

• EasyPower: Known for its user-friendly interface and focus on commercial and industrial low-voltage power systems.

• DIgSILENT PowerFactory: A highly specialized tool often used in utility and transmission planning with a strong focus on renewable energy integration.

• Schneider Electric EcoStruxure: While not a direct analysis tool like ETAP, it complements it by providing IoT architecture for connected products and operational management.

Frequently Asked Questions

Q1: What is ETAP software used for?
ETAP is primarily used for the design, analysis, and real-time operation of electrical power systems. It helps engineers ensure safety, reliability, and efficiency through digital twin technology.

Q2: Is ETAP a real-time energy management system (EMS)?
Yes, through its Operation Twin module, ETAP functions as a real-time EMS and SCADA platform, allowing for live monitoring, control, and optimization of electricity power systems.

Q3: Can ETAP handle low-voltage systems?
Absolutely. ETAP includes a dedicated suite for commercial and low-voltage power systems, making it ideal for mission-critical facilities like data centers and hospitals.

Q4: What industries typically use ETAP?
ETAP is widely used in power generation, transmission, distribution, industrial manufacturing, transportation (railways, marine), and data centers.

Q5: What is the “Digital Twin” concept in ETAP?
The digital twin is an intelligent, always-up-to-date electrical network model. It allows engineers to perform predictive simulation and validate decisions in a virtual environment before implementing changes on the physical system.

Q6: What is the difference between ETAP Design Twin and Operation Twin?
The Design Twin is used for engineering and planning (modeling, analysis, project management). The Operation Twin takes that validated model and uses it for real-time monitoring, operational awareness, and training, ensuring continuity from design to operate.

Final Thoughts

In the modern era of smart grids and critical infrastructure, relying on disparate tools for design and operation is no longer sufficient. ETAP stands out as a comprehensive energy management platform that bridges this gap through its innovative digital twin approach. By offering a unified environment for modeling, simulation, and automation, it empowers organizations to create more efficient, safe, and sustainable power systems. Whether you are managing a utility grid, an industrial facility, or a data center, ETAP provides the proven analysis engines and advanced visualization needed to navigate the complexities of electrical power management.
