CYME 9.2 Rev 01 (Distribution System Analysis Guide)

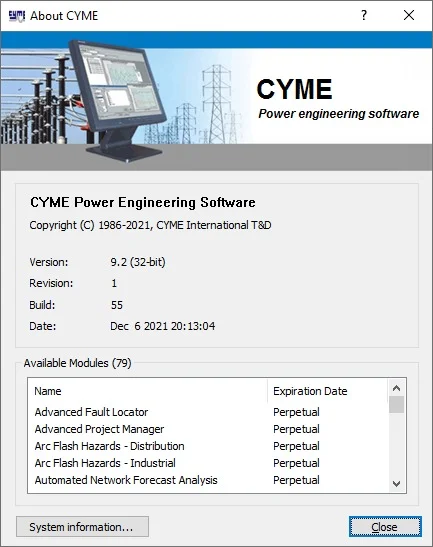

Overview of CYME 9.2 Rev 01

CYME 9.2 Rev 01 is a professional-grade power system analysis software developed by Eaton Corporation. It is designed to assist electrical engineers, utility planners, and grid operators in modeling, simulating, and optimizing electrical distribution networks. The software provides advanced analytical tools for assessing system reliability, voltage stability, and load flow.

In the evolving landscape of smart grids and renewable integration, CYME 9.2 Rev 01 serves as a critical solution for ensuring grid resilience. This version enhances previous capabilities with improved algorithms and a more intuitive user interface. Electrical engineers use this tool to perform short-circuit analysis, arc flash evaluation, and protection coordination with high precision.

The primary keyword, CYME 9.2 Rev 01, appears naturally in this overview to establish immediate topical relevance. Secondary terms such as “power system analysis,” “Eaton power software,” and “grid modeling tool” support semantic SEO throughout the article.

Key Features of CYME 9.2 Rev 01

This section details the core functionalities that make CYME 9.2 Rev 01 a trusted platform for electrical distribution design.

Load Flow Analysis

• Performs balanced and unbalanced load flow studies.

• Supports multiple methods: Newton-Raphson, Fast Decoupled, and Gauss-Seidel.

• Handles diverse components including transformers, capacitors, voltage regulators, and distributed generation.

Short-Circuit Analysis

• Calculates fault currents at any bus location according to IEC 60909 and ANSI/IEEE C37 standards.

• Models symmetrical and asymmetrical faults.

• Provides detailed fault contribution from synchronous machines and induction motors.

Arc Flash Analysis

• Evaluates incident energy and arc flash boundaries.

• Complies with NFPA 70E and IEEE 1584 guidelines.

• Generates warning labels for safety compliance.

Protection Coordination

• Simulates time-current characteristic curves for fuses, relays, and breakers.

• Automates device grading to improve selectivity.

GIS and SCADA Integration

• Imports real-world geographical data for accurate network mapping.

• Interfaces with SCADA systems for live data validation.

What’s New in CYME 9.2 Rev 01

The latest revision introduces targeted improvements for modern grid challenges.

• Enhanced Distributed Energy Resource (DER) Modeling: Improved algorithms for solar PV, wind, and battery storage integration.

• Faster Simulation Engine: Reduced computation time for large-scale networks with over 50,000 nodes.

• Updated Component Libraries: New models for EV chargers and microgrid controllers.

• Improved GUI Workflow: Drag-and-drop diagram building and customized dashboards.

• Seamless Data Migration: Direct import from CYME 9.1 and selected legacy versions.

These updates reinforce CYME 9.2 Rev 01 as a future-ready power system analysis software capable of handling renewable intermittency and bidirectional power flow.

System Requirements for CYME 9.2 Rev 01

To ensure optimal performance, verify that your workstation meets the following specifications.

Installation Guide for CYME 9.2 Rev 01

Follow this step-by-step process for a compliant, stable installation.

Pre-Installation Steps

1. Uninstall any previous CYME versions to avoid conflicts.

2. Temporarily disable antivirus software (re-enable after install).

3. Log in as a local administrator on the target machine.

Standard Installation Process

1. Insert the official Eaton installation media or download the licensed installer from the Eaton customer portal.

2. Run Setup.exe and accept the End-User License Agreement (EULA).

3. Choose “Complete” installation to install all modules.

4. Enter your valid license key provided by Eaton.

5. Select the license server type:

   • Node-locked license – for a dedicated workstation.

   • Network license – for floating licenses across a team.

6. Click Install and wait for the progress bar to complete.

7. Restart the computer to finalize driver updates.

How to Use CYME 9.2 Rev 01 for Power System Modeling

This practical guide demonstrates a typical workflow for a distribution feeder analysis.

Step 1 – Create a New Project

• Launch CYME 9.2 Rev 01 and select File > New Project.

• Name your project and define the base voltage and frequency.

Step 2 – Build the One-Line Diagram

• Drag and drop components from the library: sources, transformers, lines, loads.

• Use the Snap to Grid feature for organized placement.

• Right-click each element to enter parameters (e.g., line length, conductor type, load kW/kVAR).

Step 3 – Run a Load Flow Simulation

• Navigate to Analysis > Load Flow.

• Choose initial conditions (flat start or from previous case).

• Review output reports for bus voltages, line loading, and losses.

Step 4 – Perform a Short-Circuit Study

• Go to Analysis > Short-Circuit.

• Select fault type (3-phase, line-to-ground, etc.).

• Export results to PDF or CSV for reporting.

Step 5 – Validate Results

• Compare simulation outputs with field measurements or utility standards.

• Use the Validation Tool to identify data entry errors.

Best Use Cases for CYME 9.2 Rev 01

Electrical professionals apply this software in diverse scenarios.

• Utility Distribution Planning – Modeling feeder upgrades and volt/VAR optimization.

• Renewable Interconnection Studies – Assessing solar farm and wind plant impacts on grid stability.

• Industrial Plant Design – Sizing transformers and cables for new facilities.

• Arc Flash Risk Assessment – Creating safety labels and work boundaries per OSHA requirements.

• Smart City Microgrids – Simulating islanding and reconnection procedures.

Advantages and Limitations of CYME 9.2 Rev 01

Advantages

• Comprehensive Standards Compliance – Supports IEEE, IEC, ANSI, and NFPA.

• Scalability – Works for small feeders up to regional transmission networks.

• Technical Support – Direct access to Eaton’s engineering team.

• Batch Simulation – Automate multiple scenarios using Python scripting.

Limitations

• Learning Curve – New users may need 2–3 weeks of training.

• Hardware Intensive – Requires a powerful workstation for large models.

• License Cost – Higher upfront investment compared to open-source alternatives (e.g., OpenDSS).

Alternatives to CYME 9.2 Rev 01

Depending on your budget and technical requirements, consider these power system analysis software options.

Choice guidance: For utilities requiring technical support and compliance documentation, CYME 9.2 Rev 01 remains a top choice. For academic research or budget-constrained projects, OpenDSS is a viable alternative.

Frequently Asked Questions (FAQ)

Is CYME 9.2 Rev 01 compatible with Windows 11?

Yes. Eaton officially supports CYME 9.2 Rev 01 on Windows 11 Pro (64-bit). Ensure you install the latest patches from the Eaton support portal.

Can CYME 9.2 Rev 01 import models from AutoCAD or GIS?

Absolutely. The software includes GISLink and CAD import modules for DXF, Shapefile, and GeoJSON formats.

What license types are available for CYME 9.2 Rev 01?

Eaton offers node-locked (perpetual), network floating, and annual subscription licenses. Contact an Eaton distributor for pricing.

Does CYME 9.2 Rev 01 support Python scripting?

Yes. Automation and batch runs can be performed using the CYME Automation Interface (CAI) with Python or VBA scripts.

How does CYME handle unbalanced load flows in three-phase systems?

CYME uses a full three-phase unbalanced algorithm based on the method of symmetrical components and iterative node voltage technique. It models open wye-delta and grounded wye configurations accurately.

Can I model microgrids with battery storage in CYME 9.2 Rev 01?

Yes. The DER module includes generic and manufacturer-specific battery models, allowing dispatch strategies and state-of-charge tracking.

Is training available for new users?

Eaton provides on-demand video courses, instructor-led workshops, and a detailed user manual within the software.

Final Thoughts on CYME 9.2 Rev 01

CYME 9.2 Rev 01 stands as a mature, industry-validated power system analysis software that meets the demands of modern electrical networks. Its combination of rigorous simulation engines, support for renewable integration, and professional-grade reporting makes it indispensable for utilities and engineering consultancies.

While the initial investment is significant, the software reduces design errors, enhances worker safety through arc flash analysis, and ensures regulatory compliance. For organizations seeking a reliable, scalable tool backed by Eaton’s global support, CYME 9.2 Rev 01 represents a sound engineering decision.

To maximize value, combine CYME with real-time SCADA data and periodic model validation. Avoid unsupported third-party modifications or license workarounds, as these compromise safety and legal standing.
