Overview of the Software

PolyBoard is a leading cabinet design software developed specifically for professionals in the woodworking, carpentry, and kitchen fitting industries. It operates as a powerful plugin for popular CAD platforms, transforming complex 3D modeling into an intuitive process for creating custom furniture. The latest iteration, PolyBoard 7.09a, comes bundled with QuickDesign PB 7.4, a streamlined tool designed for rapid project proposals and parametric design.

This software suite is engineered to bridge the gap between initial client consultation and final manufacturing. While PolyBoard handles the intricate technical detailing required for production, QuickDesign focuses on speed, allowing designers to generate realistic 3D visualizations and accurate cut lists in minutes. Together, they form a comprehensive solution for managing the entire workflow of a joinery or cabinet-making business, from concept to CNC (Computer Numerical Control) output.

Key Features

PolyBoard 7.09a and QuickDesign PB 7.4 are packed with features designed to optimize productivity and accuracy.

• Parametric Design Engine: The core of the software. Users can define relationships between components (e.g., if a cabinet width changes, the software automatically adjusts the side panels, shelves, and doors proportionally). This ensures design consistency and eliminates manual calculation errors.

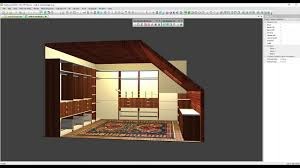

• Integrated 2D/3D Modeling: Seamlessly switch between a 2D blueprint view for technical drafting and a photorealistic 3D render for client presentations. The 3D environment allows for real-time walkthroughs of kitchens, wardrobes, and storage spaces.

• Automated Hardware Placement: A comprehensive library of standard and brand-specific hardware (hinges, drawer slides, handles) is included. The software automatically suggests and places the correct hardware based on the cabinet type and door dimensions, significantly reducing specification time.

• Real-Time Material Costing: Each project can be linked to a customizable material database. As you design, PolyBoard generates an up-to-the-minute bill of materials (BOM) and cost estimate, allowing for precise budgeting and reducing material waste.

• CNC and Nesting Optimization: This is a critical feature for production. The software can generate optimized nesting plans to maximize sheet material usage and export G-code or DXF files directly to CNC routers, ensuring a seamless shop-to-manufacturing floor workflow.

What’s New in the Latest Version

This release focuses on refining the user experience and enhancing interoperability.

• Improved QuickDesign PB 7.4 Integration: The bridge between the rapid prototyping tool and the main PolyBoard engine is now smoother. Changes made in QuickDesign can be pushed directly into PolyBoard for detailed engineering without data loss or file conversion hassles.

• Enhanced Rendering Engine: The ray-tracing capabilities have been upgraded, delivering faster render times and more realistic material textures, particularly for glass, metal, and high-gloss finishes.

• Extended Hardware Library: The latest version includes updated parametric models for new soft-close mechanisms and lift systems from major manufacturers, ensuring compatibility with the latest market offerings.

• Performance Optimizations: The software’s code has been optimized to handle more complex projects with a higher number of individual components without experiencing lag, making it suitable for large-scale commercial projects like hotel joinery or office fit-outs.

System Requirements

To ensure optimal performance of PolyBoard 7.09a and QuickDesign PB 7.4, your system should meet the following specifications:

• Operating System: Windows 10 or Windows 11 (64-bit recommended). PolyBoard is not natively supported on macOS, but it can run on Apple Silicon Macs using virtualization software like Parallels Desktop.

• Processor: Intel Core i5 or AMD Ryzen 5 (Intel Core i7 or AMD Ryzen 7 recommended for complex 3D rendering).

• Memory (RAM): 8 GB minimum; 16 GB or higher is strongly recommended for managing large projects and multitasking.

• Graphics Card: Dedicated GPU with at least 2GB VRAM (e.g., NVIDIA GeForce GTX 1050 or higher) is required for smooth 3D visualization and rendering.

• Disk Space: 5 GB of free space for installation, plus additional space for project files and material libraries.

• Supported CAD Platforms: The PolyBoard plugin is compatible with AutoCAD versions 2020 through 2024.

Installation Guide

Follow these steps for a successful installation of the software suite:

1. Download the Installer: Obtain the official PolyBoard 7.09a and QuickDesign PB 7.4 installer from the authorized distributor or developer’s website.

2. Run as Administrator: Right-click the downloaded .exe file and select “Run as administrator” to ensure all necessary system permissions are granted.

3. Accept the License Agreement: Read and accept the End User License Agreement (EULA).

4. Select Components: The installer will prompt you to choose which components to install. Ensure both “PolyBoard Core” and “QuickDesign PB 7.4” are selected.

5. Choose CAD Integration: If you have a compatible version of AutoCAD installed, the installer will detect it. Select the version you want to integrate the PolyBoard plugin with.

6. Complete Installation: Follow the on-screen prompts to finalize the installation. Once complete, restart your computer to ensure all system variables are properly set.

7. Activate License: Launch the software and enter your valid license key to activate the full version. This unlocks all features, including CNC output and batch rendering.

How to Use the Software

Mastering the PolyBoard and QuickDesign workflow involves understanding the distinct roles of each application.

1. Starting with QuickDesign PB 7.4

• Create a New Project: Launch QuickDesign and select a template (e.g., “Kitchen,” “Wardrobe”).

• Define Room Geometry: Input the room’s dimensions. Use the wall and object tools to add windows, doors, and obstacles like pillars or radiators.

• Drag and Drop Modules: Use the built-in library to place base, wall, and tall cabinets. The software uses parametric design to automatically adjust cabinet sizes to fit the room layout.

2. Refining in PolyBoard

• Open the Project in PolyBoard: With the basic layout complete, click “Edit in PolyBoard.” This transfers the project, preserving all dimensions and placements.

• Modify Construction: In PolyBoard, you can edit the internal structure. For example, you can change a fixed shelf to an adjustable one, alter the material of a door, or add custom molding.

• Hardware Assignment: Use the “Hardware” tool to automatically assign hinges based on door weight and size, or to select drawer slides.

• Generate Outputs: Navigate to the “Production” tab to generate your cut list, nesting plans, and CNC code.

3. Final Presentation

• Render the Project: Use the rendering module to create photorealistic images and 360-degree videos to share with the client for final approval before manufacturing begins.

Best Use Cases

PolyBoard and QuickDesign are versatile tools suitable for a range of professional applications:

• Kitchen and Bath Design: The primary use case. The software excels at handling the complexities of kitchen design, including corner cabinets, islands, and integrated appliances.

• Custom Furniture Manufacturing: For bespoke pieces like entertainment centers, office desks, and built-in bookcases, the parametric engine allows for unique, one-off designs to be created and manufactured with the same efficiency as standard pieces.

• Retail and Commercial Fit-Outs: For projects requiring consistency across hundreds of units (e.g., hotel wardrobes, retail shelving), the software’s ability to duplicate and modify designs while maintaining accurate costing is invaluable.

• CNC Workshop Integration: For businesses using CNC routers, the nesting optimization feature is a game-changer, reducing material costs and automating the toolpath generation process.

Advantages and Limitations

Advantages

• High Precision: Reduces human error in calculations, leading to a perfect fit during assembly.

• Time Efficiency: The integration between QuickDesign and PolyBoard cuts project time by up to 50% compared to traditional CAD methods.

• Manufacturing Ready: Direct CNC output eliminates the need for third-party nesting software.

• Scalable: Suitable for both small workshops and large-scale manufacturing operations.

Limitations

• Windows Dependency: Lack of native macOS support can be a barrier for designers in Apple-centric studios.

• Learning Curve: While QuickDesign is user-friendly, mastering the full depth of PolyBoard’s parametric logic and production settings requires dedicated training.

• Hardware Requirements: Requires a mid-to-high-range workstation to run smoothly, which can represent a significant initial investment for new businesses.

Alternatives to the Software

If you are exploring the market, consider these alternatives to PolyBoard:

• SketchUp with CabinetSense: A popular combination for designers who prefer SketchUp’s flexible modeling environment. CabinetSense adds the necessary cut list and nesting capabilities that SketchUp lacks natively.

• Mozaik Software: A strong competitor that offers a complete CAD/CAM solution with a focus on ease of use and cloud-based project management. It is also well-known for its strong CNC integration.

• Cabinet Vision: A high-end, industry-standard solution for large-scale manufacturing. It offers unparalleled depth in terms of automation and shop floor integration but comes with a steeper price point and learning curve.

• Fusion 360 with Manufacture: A powerful option for those who require not only woodworking tools but also general mechanical design and manufacturing capabilities, though it is less specialized for cabinetry than PolyBoard.

Frequently Asked Questions

1. What is the difference between PolyBoard and QuickDesign PB?
QuickDesign PB 7.4 is the entry-level tool for rapid room layout and client presentations. PolyBoard 7.09a is the advanced module that provides detailed construction editing, hardware assignment, and CNC output. They work together as a complete suite.

2. Can I use PolyBoard 7.09a without AutoCAD?
Yes, while PolyBoard is best known as an AutoCAD plugin, the latest versions also function as a standalone application. This allows users without AutoCAD to utilize its full design and manufacturing features.

3. Does the software generate cut lists for CNC machines?
Absolutely. One of the software’s primary strengths is its ability to generate optimized nesting plans and export them directly to CNC routers, supporting standard G-code and DXF formats for seamless manufacturing.

4. Is there a free trial available for the software?
Yes, the official developers offer a fully functional trial version for a limited period. This allows users to test the software’s capabilities, including rendering and cut list generation, before making a purchase.

5. What file formats can I import and export?
PolyBoard supports importing DXF and DWG files for existing floor plans. For exports, it supports DXF, DWG, and 3DS for 3D models, as well as CSV for spreadsheets like bills of materials.

6. How does the hardware library work?
The hardware library is parametric. When you assign a hinge to a door, the software automatically calculates the correct bore distances and cutout positions based on the door’s weight, thickness, and the hinge’s technical specifications, ensuring accuracy.

7. Is training available for beginners?
Yes, many authorized resellers offer training courses, from basic introduction to advanced manufacturing. There is also a wealth of video tutorials on the official website and community forums that can help new users get up to speed.

Final Thoughts

PolyBoard 7.09a and QuickDesign PB 7.4 represent a mature, powerful solution for woodworking professionals who demand precision and efficiency. By effectively combining rapid conceptualization with detailed engineering, the suite addresses the complete lifecycle of a cabinetry project. For businesses looking to minimize material waste, reduce production time, and present stunning visualizations to clients, this software suite provides a significant competitive advantage. While the initial investment in hardware and training is a consideration, the return on investment through streamlined manufacturing and error reduction makes it a worthwhile asset for any serious joinery or cabinet-making enterprise.
